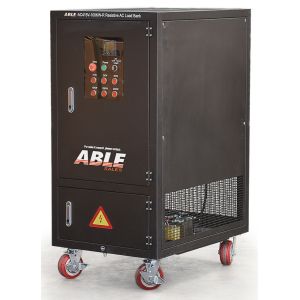

- Rated Voltage:
- 3 Phase AC 415Volt 4 Wire
- 1 Phase AC 240Volt 2 Wire
- Rated Power: 400kW
- Load Type: Resistive Load (Power Factor = 1.0)
- Type: Indoor Type & Local Control with MCB
- Load Steps: (1KW-400KW adjustable)
- Fan Cooled
Specifications
Technical Specifications
| Load Element | Stainless steel resistors |
| Load Voltage | AC415V 3 Phase 4 Wire, 50/60Hz AC240V 1 Phase 2 Wire, 50/60Hz |
| Load Power | 400KW for AC415V 3 Phase 4 Wire, 50/60Hz 400KW for AC240V 1 Phase 2 Wire, 50/60Hz |
| Load Steps | (1KW-400KW adjustable) |
| Power Factor | PF=1 |
| Load Accuracy | ±5% |
| Digital Meter | Voltage, Current, Power, Frequency and etc. |
| Power Supply | 240V 1 Phase 2 Wire, 50/60Hz |
| Control Mode | Manual control by push button |
| Wire Connections | Copper bus bar for wire connections |
| Insulation Class | F |
| Protection Level | IP20 (indoor use) |
| Fan Opeational Noise | 75dB |
| Cooling Mode | Force-air vertical cooling |
| Work Mode | Continuous work |
| Protections | Overheating/buzzer alarm, overheating/over voltage protection, emergency stop button |
| Ambient Temperature | -10℃～+50℃ |
| Mobility | Four wheels |
| Humidity | ≤95% |
| Altitude | ≤2500 meters |
| Weight | 412kg |
| Dimensions | 111 x 138 x 126 cm (Includes Wheels) |
| Shipping Weight | 430kg |
| Shipping Dimensions | 1200mm (L) x 1450mm (W) x 1400mm (H) |
