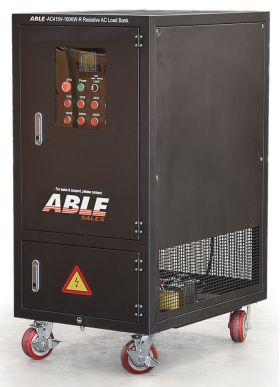

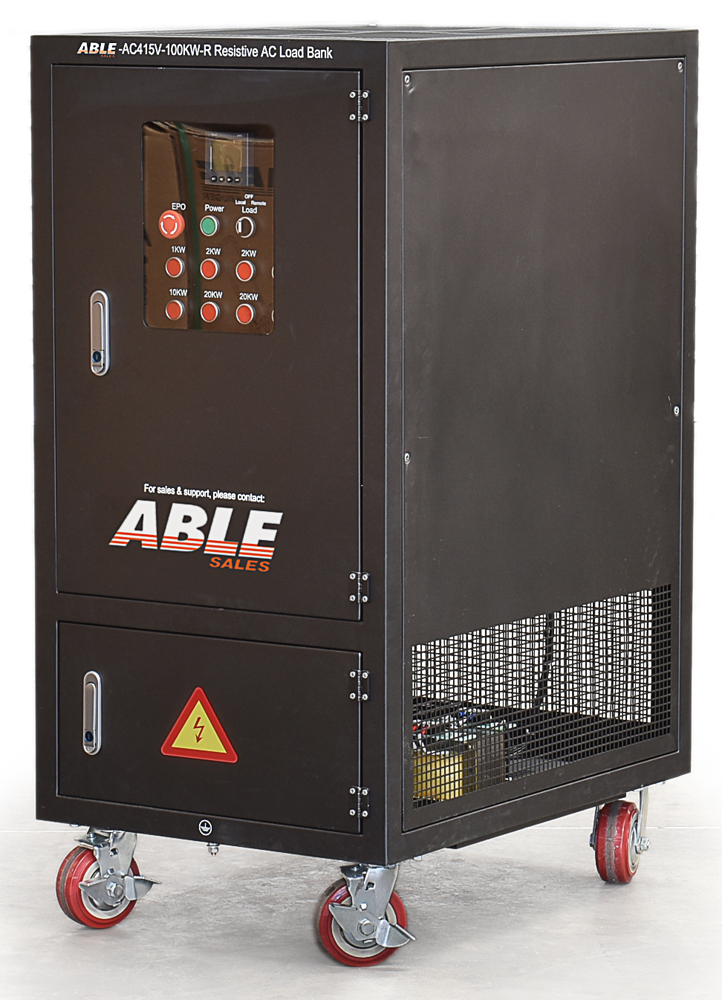

Load Bank 400000 Watts (400kW) Multi Step Variable Load - Single & Three Phase Compatible
Calculate shipping cost
The rate that will be displayed is for FREIGHT shipping.
For pickup at our WA or QLD locations, please CALL 1300 793 001 for availability.
Technical Specifications
| Load Element | Stainless steel resistors |
| Load Voltage | AC415V 3 Phase 4 Wire, 50/60Hz AC240V 1 Phase 2 Wire, 50/60Hz |
| Load Power | 400KW for AC415V 3 Phase 4 Wire, 50/60Hz 400KW for AC240V 1 Phase 2 Wire, 50/60Hz |
| Load Steps | (1KW-400KW adjustable) |
| Power Factor | PF=1 |
| Load Accuracy | ±5% |
| Digital Meter | Voltage, Current, Power, Frequency and etc. |
| Power Supply | 240V 1 Phase 2 Wire, 50/60Hz |

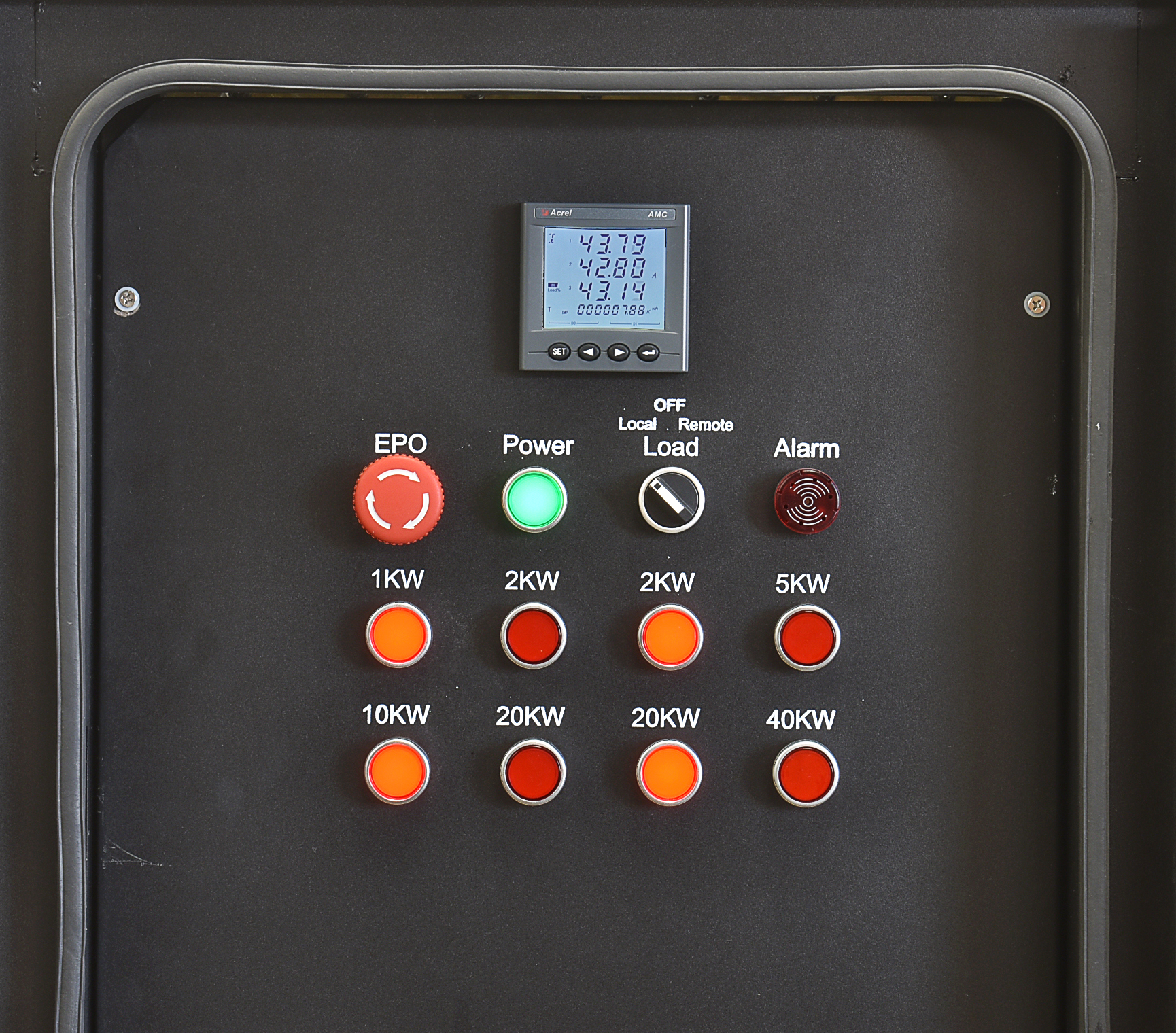

| Control Mode | Manual control by push button |

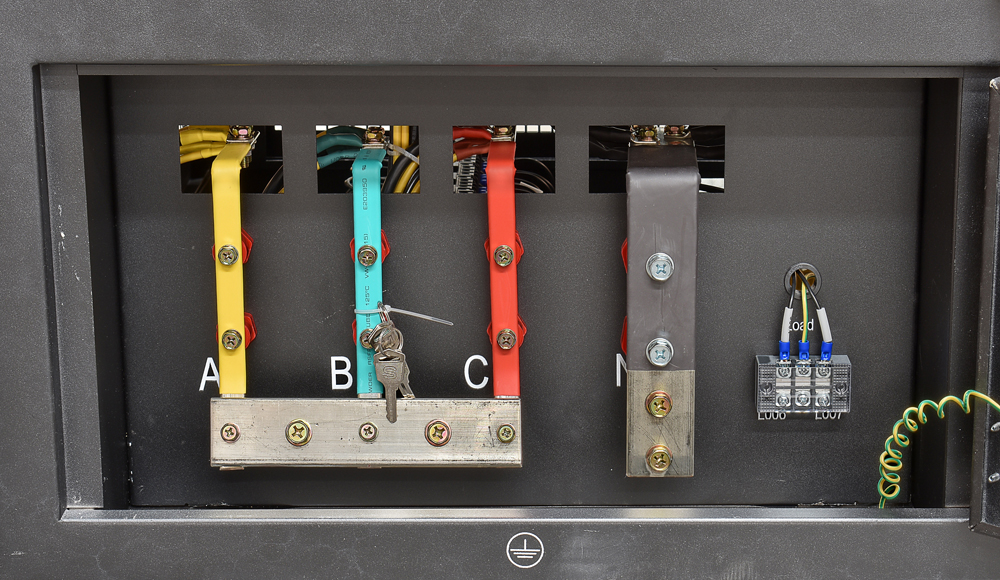

| Wire Connections | Copper bus bar for wire connections |
| Insulation Class | F |
| Protection Level | IP20 (indoor use) |
| Fan Opeational Noise | 75dB |
| Cooling Mode | Force-air vertical cooling |
| Work Mode | Continuous work |
| Protections | Overheating/buzzer alarm, overheating/over voltage protection, emergency stop button |
| Ambient Temperature | -10℃～+50℃ |
| Mobility | Four wheels |
| Humidity | ≤95% |
| Altitude | ≤2500 meters |
| Weight | 412kg |

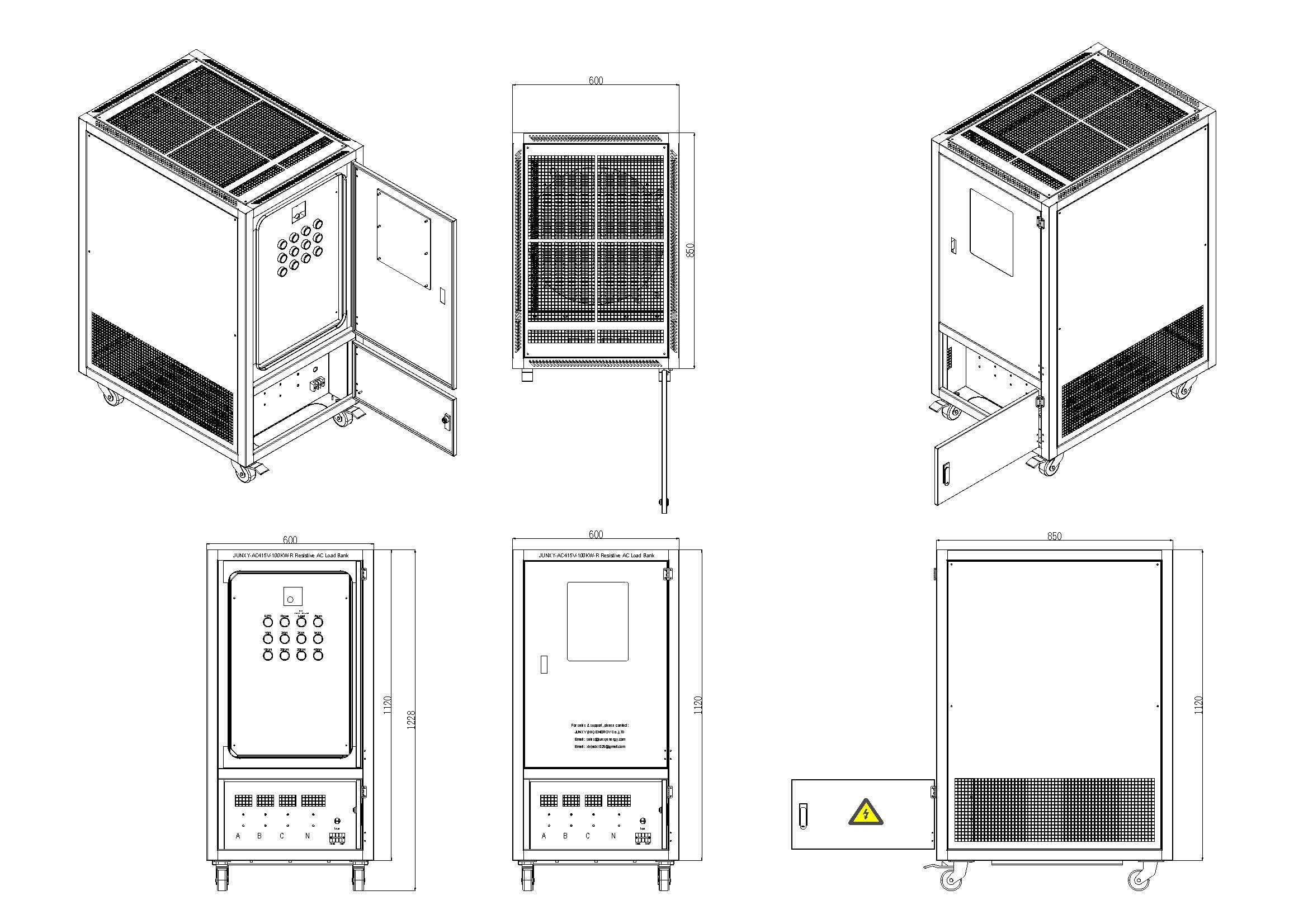

| Dimensions | 111 x 138 x 126 cm (Includes Wheels) |
| Shipping Weight | 430kg |
| Shipping Dimensions | 1200mm (L) x 1450mm (W) x 1400mm (H) |
- Rated Voltage:
- 3 Phase AC 415Volt 4 Wire
- 1 Phase AC 240Volt 2 Wire
- Rated Power: 400kW
- Load Type: Resistive Load (Power Factor = 1.0)
- Type: Indoor Type & Local Control with MCB
- Load Steps: (1KW-400KW adjustable)
- Fan Cooled - 75dB
- Operating Temp -10℃～+50℃
- IP20 (indoor use)
