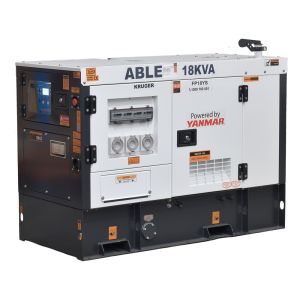

- ALL NEW CABINET DESIGN
- YANMAR Powered
- YANMAR Reliability
- High Quality Alternator
- 18 kVA 240 Volt Single Phase
- Water Cooled
- Silenced 60dB at 7 metres
- 3 × 15amp 240volt outlets
- Australian Compliant
- Full RCD & M.E.N. Wiring
- Easy connect ATS plug
- Remote Start Systems Available
- 2 YEARS OR 2,000 HOURS GENERATOR WARRANTY
Specifications
Powered by one of the most reliable Diesel engines in the world the YANMAR 4 Cylinder Diesel engine with high quality 4 Pole brushless alternator, this is one of the most cost-effective and high-performance generators you can buy!
Buy with peace of mind, ABLE’s range of YANMAR-powered diesel generators are backed by a 2 Years or 2,000 Hours Warranty.
Key Features:
- Reliable Engine: Equipped with a world-renowned reliable YANMAR 4 Cylinder Diesel engine.
- Robust Design: Tough-built, super-silenced canopy designed for outdoor.
- Watercooled: So it will run and withstands extremely hot conditions while it also extends the life of the engine over time.
- Stable Operation: 19 hours continuous stable power at prime load. The low 1500 RPM engine generates more stable operation.
- Silent Operation: 60 dBA at 7 metres, just similar to a normal conversation.
- Fuel-efficiency: 4.0 Litres/Hour at prime load. Lower fuel consumption. Lower cost. A savings you can’t ignore!
- Highest Safety Standards: Australian Safety Standards compliant.
- 2 YEARS OR 2,000 HOURS GENERATOR WARRANTY
| Prime Power : | 16.3kW / 16.3kVA 240Volts 68Amps |
| Standby Power : | 18kW / 18kVA |
| Power Factor : | 1 |
| Phase Voltage : | Single Phase 240 Volt |
| Frequency : | 50 Hertz |
| Engine : | YANMAR 4 Cylinder Diesel 4TNV88T-GGE |
| RPM : | 1500/min |
| Cooling Method : | Water Cooled - Rated For Australia's North |
| Alternator : | High Quality 4 Pole Brushless Synchronous -/c AVR |
| Starter System : | 12-volt Electric - Battery Included |
| Controller : | Comap MRS16 |
|
2 Wire / Remote Start Capable
|
|
|
Over Temperature Protection
|
|
|
Over Current Protection
|
|
|
Low Oil Protection
|
|
| Safety Systems : | Battery Isolator |
| Emergency Stop | |
| Failsafe Shutdown Fuel Solenoid | |
| Noise Level : | 60 dBA at 7 metres |
| Fuel Tank Capacity : | 75 Litres (-/c Fuel Gauge) |
| Running Time : | 19 Hours Continuous (prime load) |
| Fuel Consumption : | 4.0 litres/hour (prime load) |
| Chassis Enclosure : | Lockable |
| Sound Deadening Throughout | |
| Weather-Resistant Powder Coating | |
| Stainless Steel Fittings | |
| External Use | |
| Mine Site Ready Bunding : | Yes |
| ATS (Mains Failure) : | Easy Connect Plug (ATS Box Optional) |
| Single Phase Outlets : | 3 x 15 Amp IP66 |
| Three Phase Outlets : | No |
| No | |
| Hardwire Terminals : | Yes |
| RCD / RCBO : | Australian Standard (IP67 Enclosed) |
| Options : | Automatic Start Systems |
|
GSM
|
|
|
Timer
|
|
|
Wireless Remote
|
|
|
Solar System Compatible (Majority)
|
|
|
ATS (Mains Failure Detection / Auto Transfer Switch)
|
|
| Minespec Padlockable Battery Isolator | |
| Weight : | 630 kg |
| Dimensions : | 156 L x 73 W x 108 H cm |
