- 80 CFM or 2.27 m3 per minute
- 130 psi / 9 bar / 896 kpa
- 42 Litre Fuel Tank
- Minesite Bunded Base Fuel Tank
- Reliable Time-proven OEM 3 Cylinder Water Cooled Diesel Engine
- Tough-built Weatherproof Canopy
- Forkliftable Skid Design with Top Lift Option for Versatile Use
Specifications

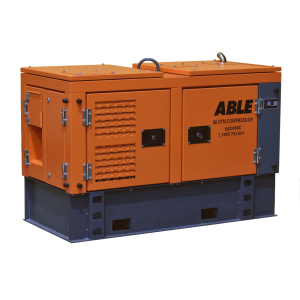

Put simply, our screw air compressors are built to last. ABLE 80 CFM diesel screw air compressor is engineered to withstand Australia’s climatic conditions. Built with a weather-resistant covered canopy and a forkliftable skid design with a top lift option makes this unit easy to transport.
Powered by a reliable time-proven OEM 3 Cylinder Diesel engine and with a 42-litre fuel tank, this air compressor is sure to give you enough air power to finish even the most rugged jobs!
Key Features:
- 80 CFM or 2.27 m3 per minute
- 130 psi / 9 bar / 896 kpa
- 42 Litre Fuel Tank
- Minesite Bunded Base Fuel Tank
- Reliable Time-proven OEM 3 Cylinder Water Cooled Diesel Engine
- Tough-built Weatherproof Canopy
- Forkliftable Skid Design with Top Lift Option for Versatile Use
| Free Air Delivery : | 80 cfm / 2.27 m3 per min |
| Working Pressure : | 130 psi / 9 bar / 896kpa |
| Engine : | OEM 3 Cylinder Diesel |
| RPM : | 1,700 - 2,200 rpm |
| Cooling Method : | Water Cooled - Rated For Australian Summers |
| Rated Power kW / RPM : | 25 kW / 2,600 rpm |
| Injection : | Direct |
| Aspiration : | Natural |
| Controller : | Digital Multi-functional Meter |
| Engine Speed | |
| Oil Pressure | |
| Oil & Water Temperature | |
| Battery Voltage | |
| Run Hours | |
| Safety Systems : | Emergency Stop Switch |
| Noise Level : | 75 dBA at 7 metres (75% Load) |
| Fuel Tank Capacity : | 42 Litres (Bunded Tank) |
| Running Time : | 10 hours (75% load) |
| Fuel Consumption : | 3.9 Litres per Hour (75% load) |
| Chassis Enclosure : | Weather-Resistant Powder Coating |
| Canopy Opening for Convenient Servicing | |
| Forkliftable for Versatile Use | |
| Canopy Built for External Use | |
| Mine Site Ready Bunding : | YES |
| Air Outlet : | 2 x 3/4 Inch Ball Valves with BSP Fittings |
| Weight (kg) : | 730 kg |
| Dimensions (LxWxH) : | 155 x 73 x 106 cm (LxWxH) |
