- 160 cfm / 4.5 m3/min
- 100 psi / 7 bar / 690 kpa
- 4 Cylinder Diesel Engine
- 65 Litre Fuel Tank
- Built-in Weather Resistant Covered Canopy
- Forkliftable Skid Design with Top Lift Option
Specifications

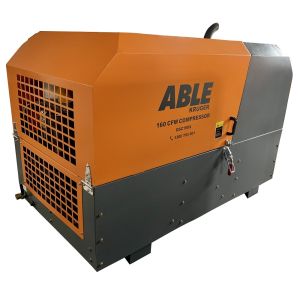

Put simply, our screw air compressors are built to last. ABLE 160 CFM diesel screw air compressor is engineered to withstand Australia’s climatic conditions. Built with a weather-resistant covered canopy and a forkliftable skid design with a top lift option makes this unit easy to transport.
Powered by a reliable time-proven OEM 4 Cylinder Diesel engine and with a 65-litre fuel tank, this air compressor is sure to give you enough air power to finish even the most rugged jobs!
Key Features:
- 165 CFM or 4.5m3 per minute
- 100 psi / 7 bar / 690 kpa
- 65 Litre Fuel Tank
- Reliable Time-proven OEM 4 Cylinder Diesel Engine
- Tough-built Weatherproof Canopy
- Forkliftable Skid Design with Top Lift Option for Versatile Use
| Free Air Delivery : | 160 cfm / 4.5 m3 per min |
| Working Pressure : | 100 psi / 7 bar / 690kpa |
| Engine : | OEM 4 Cylinder Diesel |
| RPM : | Automatic Variable |
| Cooling Method : | Water Cooled - Rated For Australian Summers |
| Bore : | 90 mm |
| Stroke : | 100 mm |
| Displacement : | 2.54 Litres |
| Rated Power kW / RPM : | 37 kW / 2,500 rpm |
| Injection : | Direct |
| Aspiration : | Natural |
| Controller : | Digital Multi-functional Meter |
| Engine Speed | |
| Oil Pressure | |
| Oil & Water Temperature | |
| Battery Voltage | |
| Run Hours | |
| Safety Systems : | Emergency Stop |
| Failsafe Shutdown Fuel Solenoid | |
| Noise Level : | 80 dBA at 7 metres (50% Load) |
| Fuel Tank Capacity : | 65 Litres |
| Running Time : | 14 hours (50% load) |
| Fuel Consumption : | 4.6 Litres per Hour (50% load) |
| Chassis Enclosure : | Weather-Resistant Powder Coating |
| Canopy Opening for Convenient Servicing | |
| Forkliftable for Versatile Use | |
| Canopy Built for External Use | |
| Mine Site Ready Bunding : | No |
| Air Outlet : | 1 x 1 Inch BSP Fitting |
| Weight (kg) : | 750 kg |
| Dimensions (LxWxH) : | 180 x 104 x 130 cm |
