- Displacement 16CFM / FAD 12CFM
- 2 x 1.5 HP Electric motors
- 240V AC / 15Amp Plug
- OIL FREE COMPRESSOR
- VERY QUIET 60dB at 7 Metres
- OIL FREE MAINTENANCE FREE
- Twin Pumps
- 125PSI
- 70 Litre Tank
- Australian Design Registered
Specifications

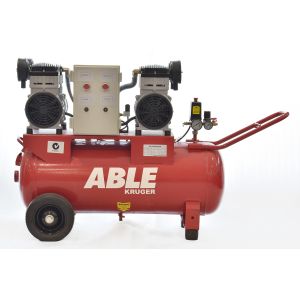

OIL-FREE air compressors require little to no maintenance as you don't have to keep lubricating. The ABLE 16CFM OIL-FREE electric piston compressor is built using the highest quality components throughout which results in a high performance, high reliability, and very silent operation with a sound level of only 60dBA / 7 meters.
Key Features:
- OIL Free - little to no maintenance required
- Worksafe Compliance: Registered Pressure vessel design.
- Long Life: Cast iron air pump will go the distance
- Low RPM: Runs better, not harder.
- Rebuildable: High economic reusability
- Maneuverability: Wheels and handles to get it where you need it
| Electric Motor: | Single Phase 240volt, 2 x1.5 HP |
| IP Rating: | IP44 |
| Electric Motor Rpm: | 2600 RPM |
| Rotation direction : | Clockwise, (View from flywheel) |
| Australian Approved Plug: | Single Phase 3 Pin Aust 15Amp |
| Compressor: | 2 twin Cylinder Oil-Free Compressor, 125PSI |
| Compressor Drive: | Direct Drive |
| Compressor RPM: | 900RPM |
| Tank Capacity: | 70 Litres |
| Compressor CFM / Lt per min: | 16 CFM /470lt/min (FAD 12CFM) |
| Pressure Gauge : | Pressure gauge MPA |
| Outlets: | 2 × 1/4" Ball Valves |
| Total Weight: | 110KG |
| Dimensions: | 100 (L) x 40 (W) x 87 (H) CM |
|
|
|
