- ALL NEW CABINET DESIGN
- 30 kVA 415 Volt
- Forward (Isuzu) Industrial Engine
- High Quality 4 Pole Brushless Alternator with AVR
- Water Cooled
- Silenced 65dB at 7 metres
- 2 × 15amp 240volt outlets
- 1 × 20amp 415volt outlets
- 1 × 32amp 415volt outlets
- Australian Compliant
- Full RCD & M.E.N. Wiring
- Easy connect ATS plug
- Remote Start Systems Available
Specifications

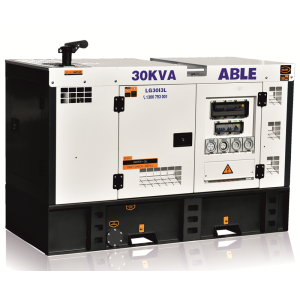

Powered by a world-renown Isuzu 4 cylinder diesel 4JB1 engine and high-quality 3 phase 4 pole brushless alternator. Add to that, the super-silenced, weather-resistant robust-canopy and water cooling method, the ABLE 30kVA 3 phase generator is one of the economical, robust, and high-performance generators you can buy!
Key Features:
- Reliable Engine: Equipped Isuzu 4 Cylinder Diesel 4JB1T Turbo Charged Engine.
- Robust Design: Tough-built, super-silenced, weather-resistant canopy designed for outdoor.
- Watercooled: So it will run and withstands extremely hot conditions while it also extends the life of the engine over time.
- Stable Operation: 30 Hours continuous stable power at prime load, thanks to its low 1500 RPM engine which generates more stable operation.
- Silent Operation: 65dbA at 7 metres, just similar to a normal conversation.
- Fuel-efficiency: Diesel fuelled - 6 Litres/Hour at prime load
- Highest Safety Standards: Australian Safety Standards compliant.
- Easy to Use: The straightforward digital control panel makes the generator easy to use.
- Easy Transportability: Designed with forklift slots for easy transportation.
- Easy to Maintain: Oil and filters are all you need.
| Prime Power : | 24kW / 30kVA 415Volts 42Amps |
| Standby Power : | 26kW / 33kVA |
| Power Factor : | 0.8 |
| Phase Voltage : | Three Phase 415 Volt |
| Frequency : | 50 Hertz |
| Engine : | Isuzu 4 Cylinder Diesel 4JB1T Turbo Charged |
| RPM : | 1500/min Electronic Speed Controlled |
| Cooling Method : | Water Cooled - Rated For Australia's North |
| Alternator : | High Quality 3 Phase 4 Pole Brushless -/c AVR |
| Starter System : | 12-volt Electric - Battery Included |
| Controller : | Comap MRS11 |
|
2 Wire / Remote Start Capable
|
|
|
Over Temperature Protection
|
|
|
Over Current Protection
|
|
|
Low Oil Protection
|
|
| Safety Systems : | Battery Isolator |
| Emergency Stop | |
| Failsafe Shutdown Fuel Solenoid | |
| Noise Level : | 65 dBA at 7 metres |
| Fuel Tank Capacity : | 180 Litres (-/c Fuel Gauge) |
| Running Time : | 30 Hours Continuous (prime load) |
| Fuel Consumption : | 6 litres/hour (prime load) |
| Chassis Enclosure : | Lockable |
| Sound Deadening Throughout | |
| Weather-Resistant Powder Coating | |
| Stainless Steel Fittings | |
| External Use | |
| Mine Site Ready Bunding : | Yes |
| ATS (Mains Failure) : | Easy Connect Plug (ATS Box Optional) |
| Single Phase Outlets : | 2 x 15 Amp IP66 |
| Three Phase Outlets : | 1 x 20 Amp IP66 |
| 1 x 32 Amp IP66 | |
| Hardwire Terminals : | Yes |
| RCD / RCBO : | Australian Standard (IP67 Enclosed) |
| Options : | Automatic Start Systems |
|
GSM
|
|
|
Timer
|
|
|
Wireless Remote
|
|
|
Solar System Compatible (Majority)
|
|
|
ATS (Mains Failure Detection / Auto Transfer Switch)
|
|
| Minespec Padlockable Battery Isolator | |
| Weight : | 830 kg |
| Dimensions : | 191 L x 85 W x 122 H cm |
