Features:
• Fuel Cubes designed to meet ADR and UN Certification.
• Fuel Cubes Bunded to 110% of tank capacity
• Fuel Cubes constructed of mild steel
• Fuel Cubes pressure tested and hydrostatically tested
• Fuel Cubes baffled for safer transport
Includes: Transport Rollover Vent PVV204
- Allow excess pressure and vacuum to be equalised through a gauzed flame proof opening.
- Aluminium body and poppets (S/S also available).
- All models have roll-over protection ensuring compartment is sealed if tilted more than 60° from vertical.
- The vent is normally mounted directly to the manhole on the underside of the emergency vent or on a separate weld flange.
- PVV vents for chemical and stainless steel tanks available.

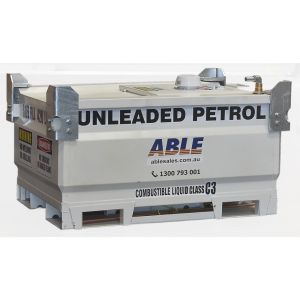

Pump System not Included this is shown for Illustrative purposes only
Specifications
| Capacity: | 450 Litres |
| Safe Fill: | 420 Litres |
| Full Weight: | 763 kg |
| Dry Weight: | 380 kg |
| Dimensions: | 1380 x 1000 x 790 mm (LxWxH) |
PVV204 (settings comply with AS2809).
- Pressure Setting 10 to 17 kPa.
- Vacuum Setting 0 to -4 kPa.
- Capacity 240m3/hr free air at 35 kPa.
- Max recommended liquid loading rate 1,000 LPM.
- Free air bleed hole in body.
