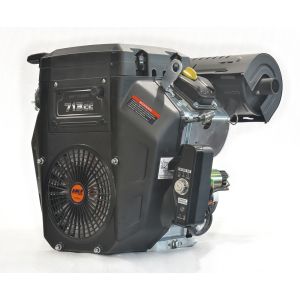

- 24 Horsepower
- V Twin Power
- 713CC Four Stroke Engine
- Electronic Ignition
- Electric Start
- Low Oil Shutdown
- 25.4MM Parallel Shaft with keyway
Specifications
| Horsepower: | 24HP |
| Eng Capacity: | 713cc |
| Bore & Stroke: | (80mm x 71mm) X 2 |
| Starter Type: | Electric Start |
| Cooling: | Air Cooled |
| Air Filter: | Micro Paper Type |
| Fuel Type: | Unleaded |
| Oil Type: | 10W30 |
| Oil Capacity: | 1400 ml |
| Shaft Size: | 25.4MM / 1” inch Parallel with keyway |
| Rotation: | Anti-Clockwise(PTO side) |
| Engine Base Dim: | 220mm x 130mm |
| Engine Overall Dim: | 490 (L) x 535 (W) x 465mm (H) Exc Shaft |
| PTO Mount Centres: | 89mm x 89mm same as 15HP |
| Dry Weight: | 47KG |
| Shipping Dimensions: | 570mm (L) x 540 (W) x 520 (H) |
| Shipping Weight: | 52Kg |
