- Electronically Speed Controlled
- 165 kVA 415 Volt
- Water Cooled
- Silenced 67dB at 7 metres
- 1 × 15amp 240volt outlets
- 1 × 20amp 415volt outlets
- 2 × 32amp 415volt outlets
- Australian Compliant
- Full RCD & M.E.N. Wiring
- Easy connect ATS plug
- Remote Start Systems Available
Specifications
Powered by our time-proven reliable OEM 6 Cylinder Diesel engine with 3 phase 4 Pole brushless synchronous alternator. Add to that the tough-built weather-resistant canopy, water cooling method, and mine site ready bunding, you have a generator that can withstand extremely hot conditions and rugged operations!

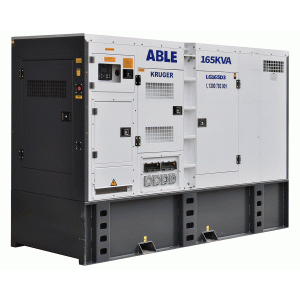

The ABLE 160kVA generator is popular in various commercial and industrial prime or backup power applications.
Key Features:
- Reliable Engine: Equipped with a time-proven reliable OEM 6 Cylinder Diesel Turbo engine.
- Robust Design: Tough-built, silenced, water-resistant canopy designed for rugged outdoor use.
- Watercooled: So it will run and withstands extremely hot conditions while it also extends the life of the engine over time.
- Stable Operation: 24 Hours continuous stable power at prime load, thanks to its low 1500 RPM engine which generates more stable operation.
- Silent Operation: 67dbA at 7 metres
- Fuel-efficiency: Diesel fuelled - 40 litres/hour at prime load
- Highest Safety Standards: Australian Safety Standards compliant.
- Easy to Use: The straightforward digital control panel makes the generator easy to use.
- Easy Transportability: Designed with forklift slots for easy transportation.
- Easy to Maintain: Oil and filters are all you need
| Prime Power : | 132kW / 165kVA 415Volts 231 Amps |
| Standby Power : | 145kW / 182kVA |
| Power Factor : | 0.8 |
| Phase Voltage : | Three Phase 415 Volt |
| Frequency : | 50 Hertz |
| Engine : | OEM 6 Cylinder Turbo Diesel |
| RPM : | 1500/min (Electronically Speed Controlled) |
| Cooling Method : | Water Cooled - Rated For Australia's North |
| Alternator : | Three Phase 4 Pole Brushless Synchronous -/c AVR |
| Starter System : | 24-volt Electric - Battery Included |
| Controller : | Comap MRS11 |
|
2 Wire / Remote Start Capable
|
|
|
Over Temperature Protection
|
|
|
Over Current Protection
|
|
|
Low Oil Protection
|
|
| Safety Systems : | Battery Isolator |
| Emergency Stop | |
| Failsafe Shutdown Fuel Solenoid | |
| Noise Level : | 67 dBA at 7 metres |
| Fuel Tank Capacity : | 950 Litres (-/c Fuel Gauge) |
| Running Time : | 24 Hours Continuous (prime load) |
| Fuel Consumption : | 40 litres/hour (prime load) |
| Chassis Enclosure : | Lockable |
| Sound Deadening Throughout | |
| Weather-Resistant Powder Coating | |
| Stainless Steel Fittings | |
| External Use | |
| Mine Site Ready Bunding : | Yes |
| ATS (Mains Failure) : | Easy Connect Plug (ATS Box Optional) |
| Single Phase Outlets : | 1 x 15 Amp IP66 |
| Three Phase Outlets : | 1 x 20 Amp IP66 |
| 2 x 32 Amp IP66 | |
| Hardwire Terminals : | Yes |
| RCD / RCBO : | Australian Standard (IP67 Enclosed) |
| Options : | Automatic Start Systems |
|
GSM
|
|
|
Timer
|
|
|
Wireless Remote
|
|
|
Solar System Compatible (Majority)
|
|
|
ATS (Mains Failure Detection / Auto Transfer Switch)
|
|
| Minespec Padlockable Battery Isolator | |
| Weight : | 2550 kg |
| Dimensions : | 320 L x 115 W x 215 H cm |
