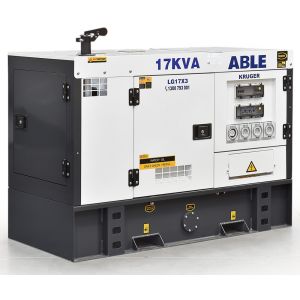

The ABLE 17kVA, 415V diesel generator is powered with an OEM time-proven reliable 4 cylinder diesel engine combined with the three-phase 4-pole brushless synchronous alternator. Add to that, with the super-silenced, weather-resistant robust-canopy and water cooling method, this generator is economical, efficient, silent, and robust suited for various commercial and industrial prime or backup power applications.
Key Features:
| Prime Power : | 13.6kW / 17kVA 415 Volts 24Amps |
| Standby Power : | 15kW / 18.7kVA |
| Power Factor : | 0.8 |
| Phase Voltage : | Three Phase 415 Volt |
| Frequency : | 50 Hertz |
| Engine : | OEM 4 Cylinder Diesel |
| RPM : | 1500/min |
| Cooling Method : | Water Cooled - Rated For Australia's North |
| Alternator : | Three Phase 4 Pole Brushless Synchronous -/c AVR |
| Starter System : | 12-volt Electric - Battery Included |
| Controller : | Comap MRS11 |
| 2 Wire / Remote Start Capable | |
| Over Temperature Protection | |
| Over Current Protection | |
| Low Oil Protection | |
| Safety Systems : | Battery Isolator |
| Emergency Stop | |
| Failsafe Shutdown Fuel Solenoid | |
| Noise Level : | 63 dBA at 7 metres |
| Fuel Tank Capacity : | 90 Litres (-/c Fuel Gauge) |
| Running Time : | 30 Hours Continuous (prime load) |
| Fuel Consumption : | 3.0 litres/hour (prime load) |
| Chassis Enclosure : | Lockable |
| Sound Deadening Throughout | |
| Weather-Resistant Powder Coating | |
| Stainless Steel Fittings | |
| External Use | |
| Mine Site Ready Bunding : | Yes |
| ATS (Mains Failure) : | Easy Connect Plug (ATS Box Optional) |
| Single Phase Outlets : | 3 x 15 Amp IP66 |
| Three Phase Outlets : | 1 x 20 Amp IP66 |
| Hardwire Terminals : | Yes |
| RCD / RCBO : | Australian Standard (IP67 Enclosed) |
| Options : | Automatic Start Systems |
| GSM | |
| Timer | |
| Wireless Remote | |
| Solar System Compatible (Majority) | |
| ATS (Mains Failure Detection / Auto Transfer Switch) | |
| Minespec Padlockable Battery Isolator | |
| Weight : | 770 kg |
| Dimensions : | 167 L x 76 W x 117 H cm |
