- Powered by a Caterpillar engine
- A-Frame Alternator
- 65 kVA maximum rating
- User-friendly GCCP control panel
- Complementary product link hardware for tracking and monitoring
- Designed to operate in standard ambient temperatures of up to 55°C
- Access to over 1,000 CAT on-site service vehicles, across Australia
- Australian Compliant
- Warranty Provided
- CONTACT US FOR PRICING
Specifications

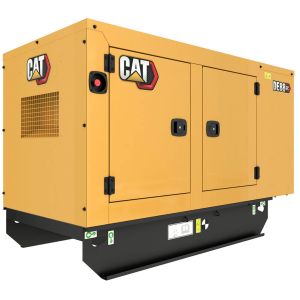

CATERPILLAR (CAT) generators are renowned worldwide for their high quality, reliability and durability. The DE65GC comes with a reliable Cat diesel engine, A-Frame Alternator and a user-friendly GCCP control panel. This generator is built to handle demanding applications as a backup power solution. All Cat generators are built to meet global emissions standards. With the provided PL444 4G LTE product link hardware you can easily track your generators hours, location and more.
Key Features:
- Powered by Caterpillar engine
- A-Frame Alternator
- 65kVA maximum rating
- User-friendly GCCP control panel
- Complementary product link hardware for tracking and monitoring
- Access to over 1,000 CAT on-site service vehicles, across Australia
- Australian Compliant
- Designed to operate in standard ambient temperatures of up to 55°C
Generator Specifications :
| Standby Power : | 65kVA |
| Phase Voltage : | 3 Phase 415 Volts |
| Frequency : | 50 Hertz |
| Engine : | Cat C3.3 Inline 4-stroke Diesel |
| RPM : | 1500 RPM |
| Alternator : | A-Frame Alternator |
| Cooling Method | Water Cooled |
| Controller : | GCCP 1.1 Control Panel |
| Noise Level : | 66.1 dBA at 7m (75% load) |
| Fuel Tank Size : | 92L |
| Run Time : | 8.14 hours at 75% load |
| Fuel Consumption : | 75% load with fan, 11.3 L/hr |
| Mine Site Ready Bunding : | Yes |
| ATS (Mains Failure) : | ATS Box Optional |
| Hardwire Terminals : | Hardwired to Main Circuit Breaker |
| Options : | Contact us for comprehensive list of extras |
| Weight : | 995 kg |
| Dimensions : | 230 L x 97 W x 141 H cm |
