- Powered by Caterpillar engine
- SR500 Alternator
- 850 kVA maximum rating
- User-friendly GCCP control panel
- Complementary product link hardware for tracking and monitoring.
- Designed to operate in standard ambient temperatures of up to 50°C
- Australian Compliant
- Access to over 1,000 CAT on-site service vehicles, across Australia
- Warranty Provided
- CONTACT US FOR PRICING
Specifications

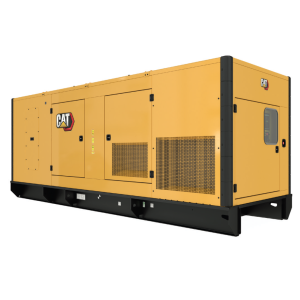

CATERPILLAR (CAT) generators are renowned worldwide for their high quality, reliability and durability. The DE850E0 comes with a reliable Cat diesel engine, SR500 Alternator and a user-friendly GCCP control panel. This generator is built to handle demanding applications as a primary power solution. All Cat generators are built to meet global emissions standards. With the provided PL444 4G LTE Product Link hardware you can easily track your generator's hours, location, and more.
Key Features:
- Powered by Caterpillar engine
- SR500 Alternator
- 850 kVA maximum rating
- User-friendly GCCP control panel
- Complementary product link hardware for tracking and monitoring.
- Designed to operate in standard ambient temperatures of up to 50°C
- Australian Compliant
- Access to over 1,000 CAT on-site service vehicles, across Australia
Generator Specifications :
| Prime Power : | 770kVA |
| Standby Power : | 850kVA |
| Voltage : | 200 to 400 Volts |
| Frequency : | 50 Hertz |
| Engine : | Cat C18 In-line 6, 4-cycle Diesel |
| Alternator : | SR500 Alternator |
| Controller : | GCCP 1.2 Control Panel |
| Noise Level : | 74 dBA at 7m |
| Air Inlet System : | Turbocharger |
| Cooling : | Radiator and cooling fan with guard |
| Fuel Tank Capacity : | 1623L |
| Fuel Consumption : | 118 L/hr at 75% load |
| Running Time : | 13.75 hours at 75% load |
| Mine Site Ready Bunding : | Yes |
| ATS (Mains Failure) : | ATS Box Optional |
| Hardwire Terminals : | Yes |
| Options : | Low coolant temperature alarm |
| Engine mounted muffler | |
| Weight : | 6,690 kg |
| Dimensions : | 557 L x 217 W x 240 H cm |
