- Yanmar Powered
- Yanmar Reliability
- High Quality Brushless Alternator
- 6 kVA 240 Volt
- Compact Low Profile Canopy
- Water Cooled
- Silenced 68dB at 7 metres
- 1 x 32 Amp 2 × 15amp 240volt outlets
- Australian Compliant
- Full RCD & M.E.N. Wiring
- Easy connect ATS plug
- Remote Start Systems Available
- 100 Litre Enxtended Range Fuel Tank
- 2 YEARS OR 2,000 HOURS GENERATOR WARRANTY
Specifications

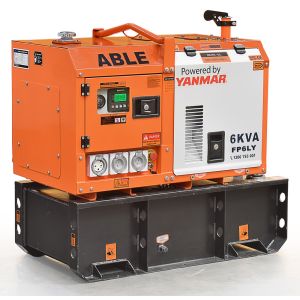

Powered by one of the most reliable Diesel engines in the world the Yanmar 2TNV70-HGE engine with quality Single Phase 2 Pole Brushless Synchronous alternator, this is one of the most cost-effective and high-performance generators you can buy!
Key Features:
- Reliable Engine: Equipped with a reliable 2 Cylinder Yanmar Engine and a high-quality Brushless Alternator
- Robust Design: Tough-built, super-silenced canopy designed for outdoor.
- Watercooled: So it will run and withstands extremely hot conditions while it also extends the life of the engine over time.
- Super Silent Operation: 68 dBA at 7 metres, quieter than a normal conversation.
- Highest Safety Standards: Australian Safety Standards compliant
- 2 YEARS OR 2,000 HOURS GENERATOR WARRANTY
|
Prime Power : |
5.5 kW / 5.5 kVA 240Volts 23Amps |
|
Standby Power : |
6 kW / 6 kVA |
|
Power Factor : |
1 |
|
Phase Voltage : |
Single Phase 240 Volt |
|
Frequency : |
50 Hertz |
|
Engine : |
Yanmar 2 Cylinder 2TNV70-HGE |
|
Engine Capacity: |
0.57 Litre |
|
RPM : |
3,000 per minute |
|
Cooling Method : |
Water Cooled - Rated For Australia's North |
|
Alternator : |
Single Phase 2 Pole Brushless Synchronous -/c AVR |
|
Starter System : |
12-volt Electric - Battery Included |
|
|
Minespec Padlockable Battery Isolator (INCLUDED) |
|
Controller : |
Smartgen HGM4010NC |
|
|
2 Wire / Remote Start Capable |
|
|
Over Temperature Protection |
|
|
Over Current Protection |
|
|
Low Oil Protection |
|
Safety Systems : |
Battery Isolator |
|
|
Emergency Stop |
|
|
Failsafe Shutdown Fuel Solenoid |
|
Noise Level : |
68 dBA at 7 metres |
|
Fuel Tank Capacity : |
100 Litres (-/c Fuel Gauge) |
|
Running Time : |
41 Hours Continuous (prime load) |
|
Fuel Consumption : |
2.4 litres/hour (prime load) |
|
Chassis Enclosure : |
Lockable |
|
|
Sound Deadening Throughout |
|
|
Weather-Resistant Powder Coating |
|
|
Stainless Steel Fittings |
|
|
External Use |
|
Mine Site Ready Bunding : |
Yes - Bunded Base |
|
ATS (Mains Failure) : |
Easy Connect Plug (ATS Box Optional) |
|
Single Phase Outlets : |
1x32AMP 2 x 15 Amp IP66 |
|
Three Phase Outlets : |
No |
|
Hardwire Terminals : |
No |
|
RCD / RCBO : |
Australian Standard (IP67 Enclosed) |
|
Options : |
Automatic Start Systems |
|
|
GSM |
|
|
Timer |
|
|
Wireless Remote |
|
|
Solar System Compatible (Majority) |
|
|
ATS (Mains Failure Detection / Auto Transfer Switch) |
|
Weight : |
394 kg |
|
Dimensions : |
119 L x 62 W x 120 H cm |
