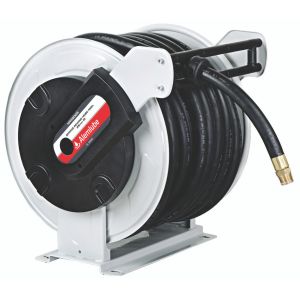

Designed to fit our Compressors & Bunded Fuel Cubes from 450L to 70,000L
• Reinforced steel frame provides maximum strength & stability
• Maximum working pressure of 300psi (20bar)
• Includes 30m x 25mm ID rubber hose & hose stop
• 1.2m lead in hose supplied standard (not depicted)
• 1.5mm thick robust drum assembly with stiffening ribs & flange edges
• Reliable spring life and positive ratchet lock design ensures a long working life
Specifications
• Reinforced steel frame provides maximum strength & stability
• Maximum working pressure of 300psi (20bar)
• Includes 30m x 25mm ID rubber hose & hose stop (1" BSP Fitting)
• 1.2m lead in hose supplied standard (not depicted) (1" BSP Fitting)
• 1.5mm thick robust drum assembly with stiffening ribs & flange edges
• Reliable spring life and positive ratchet lock design ensures a long working life
• Can be mounted on the floor or wall
• Durable long lasting powder coated finish protects against the incidence of rust
• Extends hose life and reduces hose replacement costs
• Improves operator safety
• Improves factory or workshop productivity
Dimensions: 584 x 589 x 608 mm (D x H x W)
Weight: 71 kg
Shipping Dims: 660 x 550 x 740 mm (D x H x W)
Shipping Weight: 81 kg
