Specifications

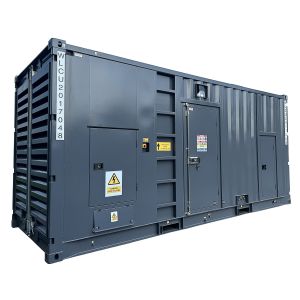

ABLE's Powered by Perkins range of Generators are built for Australia's harshest environments including Mining and Remote Work, Construction Sites, Government and Rental applications. Coupled with a Perkins engine and Stamford alternator, these generators are packaged for reliability and longevity.

Perkins has almost a century in making the world's most reliable engines. It's a name you know and trust. Our Powered by Perkins range of generators have Perkins engine reliability at its core, enclosed in one of the best canopies and feature sets you can find in the country. Water cooled with a 50 degree radiator, a large bunded fuel tank, top-of-the-line safety features, a tough outdoor-ready exterior, and a silenced canopy are all standard features.

ABLE's Powered by Perkins range of Generators are all covered by a 3 YEAR / 2,000 HOUR Warranty PRIME or STANDBY USE for your peace of mind.



Key Features:

  • Reliable Engine: Equipped with the world-renown PERKINS diesel engine.
  • Robust Design: Containerized Canopy, silenced, weather-resistant canopy designed for outdoor.
  • Watercooled: 50 Degree Remote Radiator System built for extreme heat and easy cleaning.
  • Stable Operation: 4.4 Hours continuous stable power at prime load, thanks to its low 1500 RPM engine which generates more stable operation.
  • High-Quality Power: 4-Pole Stamford brushless alternator with High Quality power output
  • Silenced Operation:  79dbA at 7 metres.
  • Highest Safety Standards: Australian Safety Standards compliant.



Generator Specifications :

Prime Power : 1000kW / 1250kVA 415Volts 1739Amps
Standby Power : 1100kW / 1375kVA
Power Factor : 0.8
Phase Voltage : Three Phase 415 Volt
Frequency : 50 Hertz
Engine : Perkins 4012-46TWG2A Diesel Engine
RPM : 1500/min
Cooling Method : Water Cooled - Rated For Australia's North
Alternator : Leroy Somer LSA50.2M6  3 Phase 4 Pole Brushless Alternator
Starter System : 2 x 12 Volt Sealed Battery Included
Controller : COMAP MRS16 IL4 Controller

2 Wire / Remote Start Capable

Over Temperature Protection

Over Current Protection

Low Oil Protection
Safety Systems : Battery Isolator
  Emergency Stop
  Failsafe Shutdown Fuel Solenoid
Noise Level : 79 dBA at 7 metres
Fuel Tank Capacity : 1150 Litres (-/c Fuel Gauge)
Running Time : 4.4 Hours Continuous (prime load)
Fuel Consumption : 259 litres/hour (prime load)
Chassis Enclosure : Lockable
  Sound Deadening Throughout
  Weather Resistant Powder Coating
  Stainless Steel Fittings
  External Use
Mine Site Ready Bunding : Yes
ATS (Mains Failure) : Easy Connect Plug (ATS Box Optional)
Hardwire Terminals : Yes
Options : Automatic Start Systems

GSM

Timer

Synchronization

Wireless Remote

Solar System Compatible (Majority)

ATS (Mains Failure Detection / Auto Transfer Switch)
  Minespec Padlockable Battery Isolator
Weight : 15,500 kg
Dimensions : 606 L x 244 W x 259 H cm
