Specifications

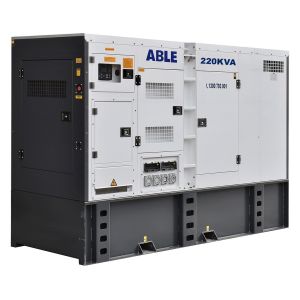

ABLE's Powered by Perkins range of Generators are built for Australia's harshest environments including Mining and Remote Work, Construction Sites, Government and Rental applications. Coupled with a Perkins engine and Stamford alternator, these generators are packaged for reliability and longevity.

Perkins has almost a century in making the world's most reliable engines. It's a name you know and trust. Our Powered by Perkins range of generators have Perkins engine reliability at its core, enclosed in one of the best canopies and feature sets you can find in the country. Water cooled with a 50 degree radiator, a large bunded fuel tank, top-of-the-line safety features, a tough outdoor-ready exterior, and a silenced canopy are all standard features.

ABLE's Powered by Perkins range of Generators are all covered by a 3 YEAR / 2,000 HOUR Warranty PRIME or STANDBY USE for your peace of mind.



Key Features:

  • Reliable Engine: Equipped with the world-renown PERKINS diesel engine.
  • Robust Design: Tough-built, silenced, weather-resistant canopy designed for outdoor.
  • Watercooled: So it will run and withstand extremely hot conditions while it also extends the life of the engine over time.
  • Stable Operation: Designed for 24/7 operation with stable power, thanks to its low 1500 RPM engine.
  • High-Quality Power: 4-Pole, brushless alternator with AVR outputting low THD sine wave power
  • Silenced Operation:  70dbA at 7 metres, just similar to a normal conversation.
  • Highest Safety Standards: Australian Safety Standards compliant.
  • Easy to Use: The straightforward digital control panel makes the generator easy to use.
  • Easy Transportability: Designed with forklift slots for easy transportation.
  • Easy to Maintain: Oil and filters are all you need.



Generator Specifications :

Prime Power : 160kW / 200kVA 415Volts 280Amps
Standby Power : 176kW / 220kVA
Power Factor : 0.8
Phase Voltage : Three Phase 415 Volt
Frequency : 50 Hertz
Engine : Perkins 1106A-70TAG4 Diesel Engine
RPM : 1500/min
Cooling Method : Water Cooled - Rated For Australia's North
Alternator : Stamford 3 Phase 4 Pole Brushless Synchronous with AVR
Starter System : 1 x 12 Volt Sealed Battery Included
Controller : COMAP MRS16 IL4 Controller

2 Wire / Remote Start Capable

Over Temperature Protection

Over Current Protection

Low Oil Protection
Safety Systems : Battery Isolator
  Emergency Stop
  Failsafe Shutdown Fuel Solenoid
Noise Level : 70 dBA at 7 metres
Fuel Tank Capacity : 950 Litres (-/c Fuel Gauge)
Running Time : 21 Hours Continuous (prime load)
Fuel Consumption : 45.8 litres/hour (prime load)
Chassis Enclosure : Lockable
  Sound Deadening Throughout
  Weather Resistant Powder Coating
  Stainless Steel Fittings
  External Use
Mine Site Ready Bunding : Yes
ATS (Mains Failure) : Easy Connect Plug (ATS Box Optional)
Single Phase Outlets : 1 x 15 Amp IP66
Three Phase Outlets : 1 x 20 Amp IP66
  2 x 32 Amp IP66
Hardwire Terminals : Yes
RCD / RCBO : Australian Standard (IP67 Enclosed)
Options : Automatic Start Systems

GSM

Timer

Synchronization

Wireless Remote

Solar System Compatible (Majority)

ATS (Mains Failure Detection / Auto Transfer Switch)
  Minespec Padlockable Battery Isolator
Weight : 2560 kg
Dimensions : 310 L x 113 W x 210 H cm
