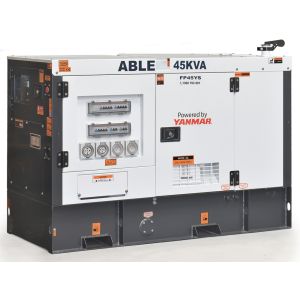

Powered by one of the most reliable Diesel engines in the world the Yanmar 4TNV98T engine with high quality 3 phase 4-Pole brushless alternator, this is one of the most cost-effective and high-performance generators you can buy!
Buy with peace of mind, ABLE’s range of Yanmar-powered diesel generators are backed by a 2 Years or 2,000 Hours Warranty.
For more help in deciding what generator size is right for your needs, check out our interactive Generator Power Calculator.
Key Features:
| Prime Power : | 32kW / 40kVA 415Volts 55Amps |
| Standby Power : | 35.6kW / 44.5kVA |
| Power Factor : | 0.8 |
| Phase Voltage : | Three Phase 415 Volt |
| Frequency : | 50 Hertz |
| Engine : | Yanmar 4TNV98T |
| RPM : | 1500/min |
| Cooling Method : | Water Cooled - Rated For Australia's North |
| Alternator : | High Quality 3 Phase 4 Pole Brushless Synchronous -/c AVR |
| Starter System : | 12-volt Electric - Battery Included |
| Controller : | Comap AMF20 (European Made) |
|
2 Wire / Remote Start Capable
|
|
|
Over Temperature Protection
|
|
|
Over Current Protection
|
|
|
Low Oil Protection
|
|
| Safety Systems : | Battery Isolator |
| Emergency Stop | |
| Failsafe Shutdown Fuel Solenoid | |
| Noise Level : | 62 dBA at 7 metres |
| Fuel Tank Capacity : | 110 Litres (-/c Fuel Gauge) |
| Running Time : | 12 Hours Continuous (prime load) |
| Fuel Consumption : | 9.3 litres/hour (prime load) |
| Chassis Enclosure : | Lockable |
| Sound Deadening Throughout | |
| Weather-Resistant Powder Coating | |
| Stainless Steel Fittings | |
| External Use | |
| Mine Site Ready Bunding : | Yes |
| ATS (Mains Failure) : | Easy Connect Plug (ATS Box Optional) |
| Single Phase Outlets : | 2 x 15 Amp IP66 |
| Three Phase Outlets : | 1 x 20 Amp IP66 |
| 1 x 32 Amp IP66 | |
| Hardwire Terminals : | Yes |
| RCD / RCBO : | Australian Standard (IP67 Enclosed) |
| Options : | Automatic Start Systems |
|
GSM
|
|
|
Timer
|
|
|
Wireless Remote
|
|
|
Solar System Compatible (Majority)
|
|
|
ATS (Mains Failure Detection / Auto Transfer Switch)
|
|
| Minespec Padlockable Battery Isolator | |
| Weight : | 900 kg |
| Dimensions : | 180 L x 76 W x 121 H cm |
