- 400CFM / 11.3 m3/min at 7 Bar Air Pressure
- 375CFM / 10.6 m3/min at 10 Bar Air Pressure (Workshop Adjustable)
- 100-145 psi / 7 - 10 Bar Air Pressure
- Reliable Time-proven Water Cooled Diesel Engine
- 185 Litre Minesite Bunded Base Fuel Tank
- Tough-built Weatherproof Canopy
- Forkliftable Skid Design with Top Lift Option for Versatile Use
Specifications

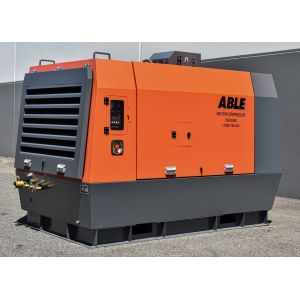

Put simply, our screw air compressors are built to last. ABLE 400 CFM diesel screw air compressor is engineered to withstand Australia’s climatic conditions. Built with a weather-resistant covered canopy and a forkliftable skid design with a top lift option makes this unit easy to transport.
Powered by a reliable time-proven Diesel engine and with a 185 Litre fuel tank, this air compressor is sure to give you enough air power to finish even the most rugged jobs!
Key Features:
- 400CFM / 11.3 m3/min at 7 Bar Air Pressure
- 375CFM / 10.6 m3/min at 10 Bar Air Pressure (Workshop Adjustable)
- Reliable Time-proven Water Cooled Diesel Engine
- 185 Litre Minesite Bunded Base Fuel Tank
- Tough-built Weatherproof Canopy
- Forkliftable Skid Design with Top Lift Option for Versatile Use
| Air Delivery / Pressure: | 400CFM / 11.3 m3/min at 7 Bar Air Pressure |
| Air Delivery / Pressure: | 375CFM / 10.6 m3/min at 10 Bar Air Pressure (Workshop Adjustable) |
| Engine : | 4 Cylinder Water Cooled Diesel |
| RPM : | 2,200 rpm |
| Cooling Method : | Water Cooled - Rated For Australian Summers |
| Rated Power kW / RPM : | 97 kW / 2,200 rpm |
| Injection : | Direct |
| Aspiration : | Natural |
| Controller : | Digital Multi-functional Meter |
| Engine Speed | |
| Oil Pressure | |
| Oil & Water Temperature | |
| Battery Voltage | |
| Run Hours | |
| Safety Systems : | Emergency Stop Switch |
| Noise Level : | 75 dBA at 7 metres (75% Load) |
| Fuel Tank Capacity : | 185 Litres (Bunded Tank) |
| Running Time : | 12 hours (75% load) |
| Fuel Consumption : | 15.7 Litres per Hour (75% load) |
| Chassis Enclosure : | Weather-Resistant Powder Coating |
| Canopy Opening for Convenient Servicing | |
| Forkliftable for Versatile Use | |
| Canopy Built for External Use | |
| Mine Site Ready Bunding : | YES |
| Air Outlet : | 1 x 2 inch BSP / 3 x 3/4 inch BSP with Ball Valves |
| Weight (kg) : | 1,800 kg |
| Dimensions (LxWxH) : | 2562 x 1425 x 1651 mm (LxWxH) |
