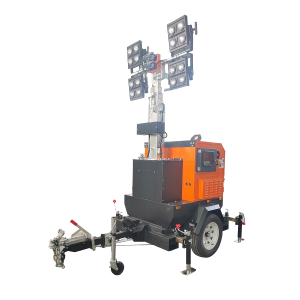

Powered by a KUBOTA Z482 low RPM time proven 2 cylinder water cooled engine, this LED Lighting Tower is perfect for your Road Works, Civil Construction and Outdoor Lighting needs.
With 4 x 300 Watt High-Efficiency LED Lights, this heavily built unit reliably emits 156,000 lumens of light.
The advantage of great Fuel Economy, means the 100 litre fuel tank at a low fuel consumption of 0.55 litres per hour, gives a massive 180 hour runtime on one tank of diesel.
Ease of use is a key feature of the ABLE LED lighting tower with an electrically operated 9 metre mast lift.
Key Features:
|
Lighting Tower & Mast |
|
| Lamps Power : | 4 x 300 Watt LED |
| Lamps Type : | 100 - 277 Volts AC LED |
| Total Lumens : | 156,000 Lumens |
| Illuminated Area : | 8,000 m2 of light @ 10 Lux |
| Mast Height : | 9 Metres (6 Section Telescopic Mast) |
| Mast Lifting : | Electric (with Mechanical backup) |
| Mast Rotation : | 330 degrees Manual Operation |
| Lamp Tilt : | 90 degrees Manual Operation |
| Wind Speed Resistance : | 80 Km/h |
| Bunded Fuel Tank : | 100 Litres Capacity |
| Runtime Full Tank : | 180 Hours |
| Fuel Consumption : | 0.55 Litres per Hour |
| Control Unit : | Smartgen HGM1790N |
| Engine | |
| Engine : | Kubota Z482 Diesel 2 cylinder |
| Engine Cooling : | Liquid Cooled |
| Engine Speed : | 1,500 rpm |
| Engine Output : | 3.0kw @ 1,500 rpm |
| Trailer / Chassis | |
| Chassis : | Single Axle with 2 Wheels |
| Tyre Size : | 14 inch Heavy Duty |
| Brakes : | Disk Brakes (ADR) via Cable to Tow Hitch (ADR) |
| Trailer Lights : | LED lights (ADR) with 7 pin Connector |
| Maximum Towing Speed : | 80 Km/h |
| Stabilizers Fitted : | 4 Mechanical Stabilizer Feet and 1 Jockey Wheel |
| Compliance : | VIN number supplied and ready to be road registered |
| Weight & Dimensions | |
| Dry Weight : | 890 kg |
| Transport Dims : | 242 x 136 x 290 cm (L x W x H) |
| Working Dims : | 242 x 258 x 2900 cm (L x W x H) |
