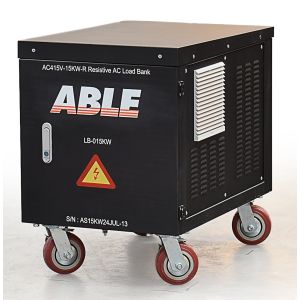

- Rated Voltage:
- 3 Phase AC 415Volt 4 Wire
- 1 Phase AC 240Volt 2 Wire
- Rated Power: 15kW
- Load Type: Resistive Load (Power Factor = 1.0)
- Type: IP54 (Light Outdoor Use) & Local Control with MCB
- Load Steps: 1KW, 2KW*2, 5KW*2 (1KW-15KW adjustable)
- Fan Cooled
Specifications
Technical Specifications
| Load Element | Stainless steel resistors |
| Load Voltage | AC415V 3 Phase 4 Wire, 50/60Hz AC240V 1 Phase 2 Wire, 50/60Hz |
| Load Power | 15KW for AC415V 3 Phase 4 Wire, 50/60Hz 15KW for AC240V 1 Phase 2 Wire, 50/60Hz |
| Load Steps | 1KW, 2KW*2, 5KW*2 (1KW-15KW adjustable) |
| Power Factor | PF=1 |
| Load Accuracy | ±5% |
| Digital Meter | Voltage, Current, Power, Frequency and etc. |
| Power Supply | 240V 1 Phase 2 Wire, 50/60Hz |
| Control Mode | Manual control by push button |
| Wire Connections | Copper bus bar for wire connections |
| Insulation Class | F |
| Protection Level | IP54 (Light Outdoor Use) |
| Fan Opeational Noise | 75dB |
| Cooling Mode | Force-air vertical cooling |
| Work Mode | Continuous work |
| Protections | Overheating/buzzer alarm, overheating/over voltage protection, emergency stop button |
| Ambient Temperature | -10℃～+50℃ |
| Dimensions | 500x750x960mm |
| Mobility | Four wheels |
| Humidity | ≤95% |
| Altitude | ≤2500 meters |
| Weight | 82kg |
| Dimensions | 760x510x530mm (760x510x690mm Wheels Fitted) |
| Shipping Weight | 98 kg |
| Shipping Dimensions | 760 x 560 x 860 mm |
