- ALL NEW CABINET DESIGN
- YANMAR Powered
- YANMAR Reliability
- High Quality 4 Pole Brushless Alternator
- 14 kVA 415 Volt
- Water Cooled
- Silenced 60dB at 7 metres
- 3 × 15amp 240 volt outlets
- 1 × 20amp 415 volt outlets
- Australian Compliant
- Full RCD & M.E.N. Wiring
- Easy connect ATS plug
- Remote Start Systems Available
- 2 YEARS OR 2,000 HOURS GENERATOR WARRANTY
Specifications

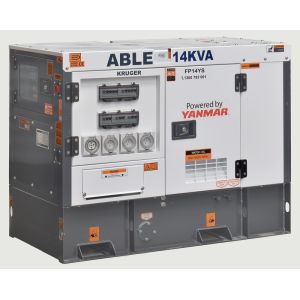

Powered by one of the most reliable Diesel engines in the world the Yanmar 3TNV88-GGE 3 Cylinder Engine with high quality 4 Pole brushless alternator, this is one of the most cost-effective and high-performance generators you can buy!
Buy with peace of mind, ABLE’s range of Yanmar powered diesel generators are backed by 2 Years or 2,000 Hours Generator Warranty.
Key Features:
- Reliable Engine: Equipped with reliable Yanmar 3TNV88-GGE 3 Cylinder Engine
- Robust Design: Tough-built, super-silenced canopy designed for outdoor.
- Watercooled: So it will run and withstands extremely hot conditions while it also extends the life of the engine over time.
- Stable Operation: 22 hours continuous stable power at prime load. Its low 1500 RPM engine generates more stable operation.
- Silent Operation: 60 dBA at 7 metres, quieter than a normal conversation.
- Fuel-efficiency: 3 Litres/Hour at prime load. Low fuel consumption. Low cost. A savings you can’t ignore!
- Highest Safety Standards: Australian Safety Standards compliant.
- 2 YEARS OR 2,000 HOURS GENERATOR WARRANTY.
| Prime Power : | 10.8kW / 13.5kVA 415Volts 19Amps |
| Standby Power : | 12kW / 15kVA |
| Power Factor : | 0.8 |
| Phase Voltage : | Three Phase 415 Volt |
| Frequency : | 50 Hertz |
| Engine : | Yanmar 3TNV88-GGE 3 Cylinder Engine |
| RPM : | 1500/min |
| Cooling Method : | Water Cooled - Rated For Australia's North |
| Alternator : | High-Quality 3 Phase 4 Pole Brushless Synchronous -/c AVR |
| Starter System : | 12-volt Electric - Battery Included |
| Controller : | Comap MRS16 |
|
2 Wire / Remote Start Capable
|
|
|
Over Temperature Protection
|
|
|
Over Current Protection
|
|
|
Low Oil Protection
|
|
| Safety Systems : | Battery Isolator |
| Emergency Stop | |
| Failsafe Shutdown Fuel Solenoid | |
| Noise Level : | 60 dBA at 7 metres |
| Fuel Tank Capacity : | 65 Litres (-/c Fuel Gauge) |
| Running Time : | 22 Hours Continuous (prime load) |
| Fuel Consumption : | 3 litres/hour (prime load) |
| Chassis Enclosure : | Lockable |
| Sound Deadening Throughout | |
| Weather-Resistant Powder Coating | |
| Stainless Steel Fittings | |
| External Use | |
| Mine Site Ready Bunding : | Yes |
| ATS (Mains Failure) : | Easy Connect Plug (ATS Box Optional) |
| Single Phase Outlets : | 3 x 15 Amp IP66 |
| Three Phase Outlets : | 1 x 20 Amp IP66 |
| Hardwire Terminals : | Yes |
| RCD / RCBO : | Australian Standard (IP67 Enclosed) |
| Options : | Automatic Start Systems |
|
GSM
|
|
|
Timer
|
|
|
Wireless Remote
|
|
|
Solar System Compatible (Majority)
|
|
|
ATS (Mains Failure Detection / Auto Transfer Switch)
|
|
| Minespec Padlockable Battery Isolator | |
| Weight : | 500 kg |
| Dimensions : | 137 L x 73 W x 108 H cm |
